Scratch-resistant PVC Decorative Film

Scratch-resistant Decorative PVC Film is widely used in furniture, MDF board and wallboard surface decoration.

The color can be white, blue, pink, yellow, gray, etc.

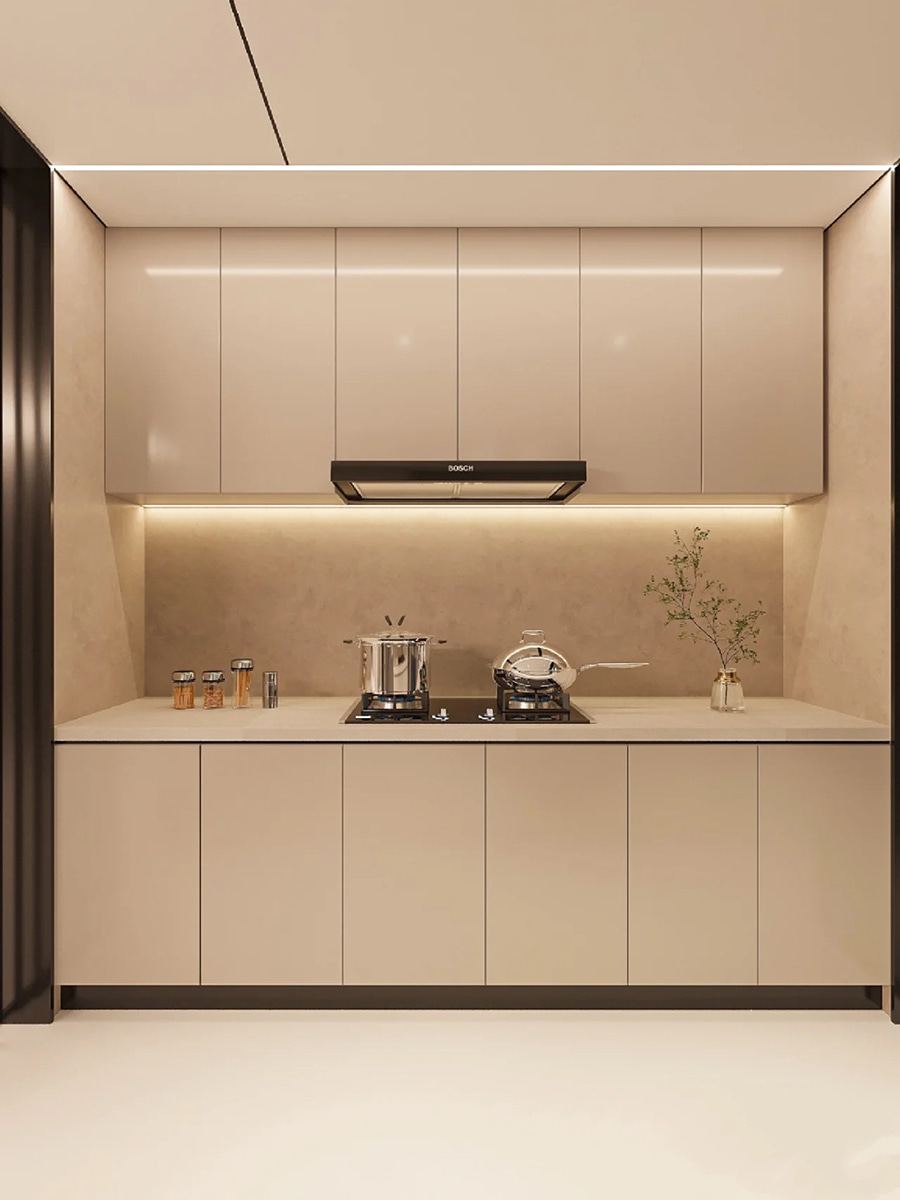

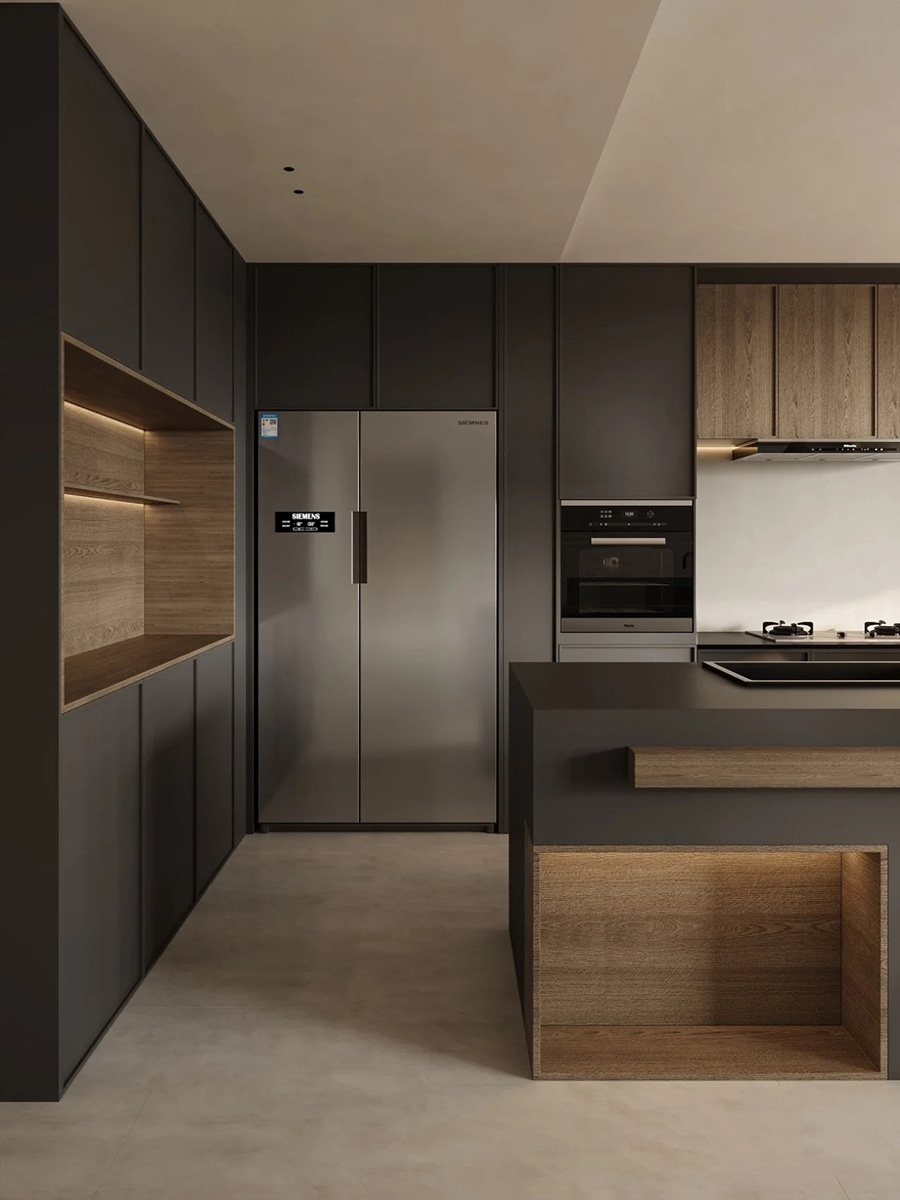

Scratch-resistant solid color PVC film is mainly used for the surface decoration of kitchen cabinets, wardrobes and ceiling. The Decorative Film of MSD also has the functions of antibacterial, mildew, and UV resistance. It can meet the requirements of environmental protection standards at all levels.

Hard coating layer

UV-cured acrylic top coat with hardness rating of 2H to 3H (pencil hardness test ASTM D3363). Provides surface protection against daily wear, light impacts, and cleaning abrasion.

Decorative finish

Available in wood grain, metallic, solid color, and abstract patterns. Surface texture options include embossed grain, brushed metal, and smooth matte.

Substrate stability

PVC base with thickness range 0.18mm to 0.40mm. Dimensional change ≤ 0.5% after 24 hours at 70°C (ASTM D1204).

Adhesive system

Pressure-sensitive acrylic adhesive with peel strength ≥ 20 N/25mm (ASTM D3330). Removable option available for temporary applications.

Technical specifications

Total thickness 0.18 – 0.40 mm

Surface hardness 2H – 3H (pencil)

Width options 1.22m / 1.37m / 1.52m

Length per roll 25m / 50m

Fire rating B1 (GB 8624) / Class B-s1, d0

Temperature range -10°C to +60°C

Application areas

Furniture

Cabinet doors, drawer fronts, table surfaces

Architectural

Wall panels, column cladding, elevator interiors

Retail

Display shelving, counter tops, fitting rooms

Transport

Bus interiors, train seating areas, marine applications

Handling guidelines

Cleaning

Soft cloth with neutral detergent. Avoid abrasive cleaners or scouring pads which may scratch the hard coating.

Installation

Apply at 18-28°C. Use roller pressure of 4-6 kg per linear meter to ensure full adhesive contact.

Storage

Rolls stored vertically or horizontally on pallets. Avoid direct sunlight and temperature above 35°C.

Frequently asked

Does the scratch-resistant layer affect print quality?

No. The clear hard coat is applied over the printed layer, allowing full color visibility while adding surface protection.

Can this film be used on curved surfaces?

Yes. The PVC base remains flexible. Minimum bend radius is 3 times the material thickness at 20°C.

Is the scratch resistance permanent?

The hard coating maintains its hardness rating throughout the service life. Abrasion tests show no reduction in pencil hardness after 5000 scrub cycles.
